ADR 067: Mempool Refactor

• ADR 067: Mempool Refactor
  • Changelog
  • Status
  • Context
    • Current Design
  • Alternative Approaches
  • Prior Art
    • Ethereum
    • Diem
  • Decision
  • Detailed Design
    • CheckTx
    • Mempool
    • Eviction
    • Gossiping
    • Performance
  • Future Improvements
  • Consequences
    • Positive
    • Negative
    • Neutral
  • References

Changelog

• April 19, 2021: Initial Draft (@alexanderbez)

Status

Accepted

Context

Tendermint Core has a reactor and data structure, mempool, that facilitates the ephemeral storage of uncommitted transactions. Honest nodes participating in a Tendermint network gossip these uncommitted transactions to each other if they pass the application's CheckTx. In addition, block proposers select from the mempool a subset of uncommitted transactions to include in the next block.

Currently, the mempool in Tendermint Core is designed as a FIFO queue. In other words, transactions are included in blocks as they are received by a node. There currently is no explicit and prioritized ordering of these uncommitted transactions. This presents a few technical and UX challenges for operators and applications.

Namely, validators are not able to prioritize transactions by their fees or any incentive aligned mechanism. In addition, the lack of prioritization also leads to cascading effects in terms of DoS and various attack vectors on networks, e.g. cosmos/cosmos-sdk#8224.

Thus, Tendermint Core needs the ability for an application and its users to prioritize transactions in a flexible and performant manner. Specifically, we're aiming to either improve, maintain or add the following properties in the Tendermint mempool:

• Allow application-determined transaction priority.
• Allow efficient concurrent reads and writes.
• Allow block proposers to reap transactions efficiently by priority.
• Maintain a fixed mempool capacity by transaction size and evict lower priority transactions to make room for higher priority transactions.
• Allow transactions to be gossiped by priority efficiently.
• Allow operators to specify a maximum TTL for transactions in the mempool before they're automatically evicted if not selected for a block proposal in time.
• Ensure the design allows for future extensions, such as replace-by-priority and allowing multiple pending transactions per sender, to be incorporated easily.

Note, not all of these properties will be addressed by the proposed changes in this ADR. However, this proposal will ensure that any unaddressed properties can be addressed in an easy and extensible manner in the future.

Current Design

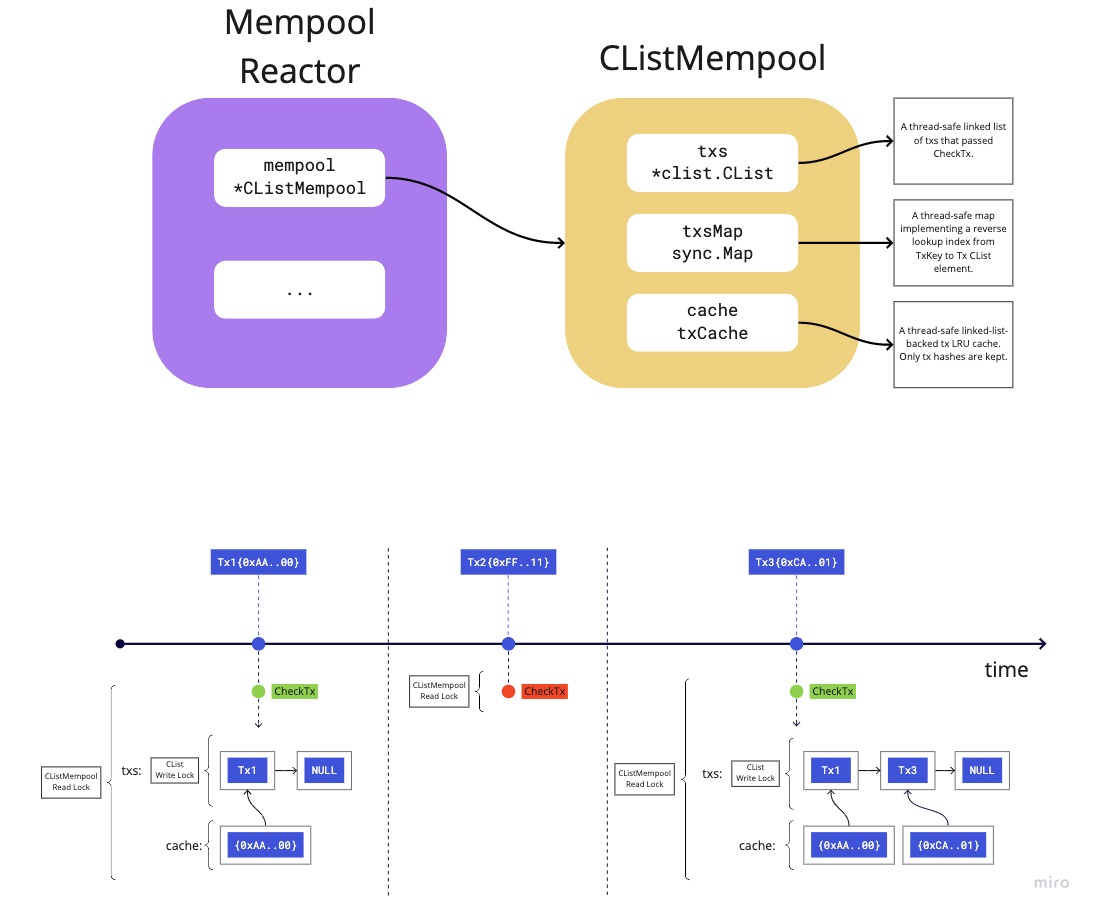

At the core of the v0 mempool reactor is a concurrent linked-list. This is the primary data structure that contains Tx objects that have passed CheckTx. When a node receives a transaction from another peer, it executes CheckTx, which obtains a read-lock on the *CListMempool. If the transaction passes CheckTx locally on the node, it is added to the *CList by obtaining a write-lock. It is also added to the cache and txsMap, both of which obtain their own respective write-locks and map a reference from the transaction hash to the Tx itself.

Transactions are continuously gossiped to peers whenever a new transaction is added to a local node's *CList, where the node at the front of the *CList is selected. Another transaction will not be gossiped until the *CList notifies the reader that there are more transactions to gossip.

When a proposer attempts to propose a block, they will execute ReapMaxBytesMaxGas on the reactor's *CListMempool. This call obtains a read-lock on the *CListMempool and selects as many transactions as possible starting from the front of the *CList moving to the back of the list.

When a block is finally committed, a caller invokes Update on the reactor's *CListMempool with all the selected transactions. Note, the caller must also explicitly obtain a write-lock on the reactor's *CListMempool. This call will remove all the supplied transactions from the txsMap and the *CList, both of which obtain their own respective write-locks. In addition, the transaction may also be removed from the cache which obtains it's own write-lock.

Alternative Approaches

When considering which approach to take for a priority-based flexible and performant mempool, there are two core candidates. The first candidate is less invasive in the required set of protocol and implementation changes, which simply extends the existing CheckTx ABCI method. The second candidate essentially involves the introduction of new ABCI method(s) and would require a higher degree of complexity in protocol and implementation changes, some of which may either overlap or conflict with the upcoming introduction of ABCI++.

For more information on the various approaches and proposals, please see the mempool discussion.

Prior Art

Ethereum

The Ethereum mempool, specifically Geth, contains a mempool, *TxPool, that contains various mappings indexed by account, such as a pending which contains all processable transactions for accounts prioritized by nonce. It also contains a queue which is the exact same mapping except it contains not currently processable transactions. The mempool also contains a priced index of type *txPricedList that is a priority queue based on transaction price.

Diem

The Diem mempool contains a similar approach to the one we propose. Specifically, the Diem mempool contains a mapping from Account:[]Tx. On top of this primary mapping from account to a list of transactions, are various indexes used to perform certain actions.

The main index, PriorityIndex. is an ordered queue of transactions that are “consensus-ready” (i.e., they have a sequence number which is sequential to the current sequence number for the account). This queue is ordered by gas price so that if a client is willing to pay more (than other clients) per unit of execution, then they can enter consensus earlier.

Decision

To incorporate a priority-based flexible and performant mempool in Tendermint Core, we will introduce new fields, priority and sender, into the ResponseCheckTx type.

We will introduce a new versioned mempool reactor, v1 and assume an implicit version of the current mempool reactor as v0. In the new v1 mempool reactor, we largely keep the functionality the same as v0 except we augment the underlying data structures. Specifically, we keep a mapping of senders to transaction objects. On top of this mapping, we index transactions to provide the ability to efficiently gossip and reap transactions by priority.

Detailed Design

CheckTx

We introduce the following new fields into the ResponseCheckTx type:

message ResponseCheckTx {
  uint32         code       = 1;
  bytes          data       = 2;
  string         log        = 3;  // nondeterministic
  string         info       = 4;  // nondeterministic
  int64          gas_wanted = 5 [json_name = "gas_wanted"];
  int64          gas_used   = 6 [json_name = "gas_used"];
  repeated Event events     = 7 [(gogoproto.nullable) = false, (gogoproto.jsontag) = "events,omitempty"];
  string         codespace  = 8;
+ int64          priority   = 9;
+ string         sender     = 10;
}

It is entirely up the application in determining how these fields are populated and with what values, e.g. the sender could be the signer and fee payer of the transaction, the priority could be the cumulative sum of the fee(s).

Only sender is required, while priority can be omitted which would result in using the default value of zero.

Mempool

The existing concurrent-safe linked-list will be replaced by a thread-safe map of <sender:*Tx>, i.e a mapping from sender to a single *Tx object, where each *Tx is the next valid and processable transaction from the given sender.

On top of this mapping, we index all transactions by priority using a thread-safe priority queue, i.e. a max heap. When a proposer is ready to select transactions for the next block proposal, transactions are selected from this priority index by highest priority order. When a transaction is selected and reaped, it is removed from this index and from the <sender:*Tx> mapping.

We define Tx as the following data structure:

type Tx struct {
  // Tx represents the raw binary transaction data.
  Tx []byte

  // Priority defines the transaction's priority as specified by the application
  // in the ResponseCheckTx response.
  Priority int64

  // Sender defines the transaction's sender as specified by the application in
  // the ResponseCheckTx response.
  Sender string

  // Index defines the current index in the priority queue index. Note, if
  // multiple Tx indexes are needed, this field will be removed and each Tx
  // index will have its own wrapped Tx type.
  Index int
}

Eviction

Upon successfully executing CheckTx for a new Tx and the mempool is currently full, we must check if there exists a Tx of lower priority that can be evicted to make room for the new Tx with higher priority and with sufficient size capacity left.

If such a Tx exists, we find it by obtaining a read lock and sorting the priority queue index. Once sorted, we find the first Tx with lower priority and size such that the new Tx would fit within the mempool's size limit. We then remove this Tx from the priority queue index as well as the <sender:*Tx> mapping.

This will require additional O(n) space and O(n*log(n)) runtime complexity. Note that the space complexity does not depend on the size of the tx.

Gossiping

We keep the existing thread-safe linked list as an additional index. Using this index, we can efficiently gossip transactions in the same manner as they are gossiped now (FIFO).

Gossiping transactions will not require locking any other indexes.

Performance

Performance should largely remain unaffected apart from the space overhead of keeping an additional priority queue index and the case where we need to evict transactions from the priority queue index. There should be no reads which block writes on any index

Future Improvements

There are a few considerable ways in which the proposed design can be improved or expanded upon. Namely, transaction gossiping and for the ability to support multiple transactions from the same sender.

With regards to transaction gossiping, we need empirically validate whether we need to gossip by priority. In addition, the current method of gossiping may not be the most efficient. Specifically, broadcasting all the transactions a node has in it's mempool to it's peers. Rather, we should explore for the ability to gossip transactions on a request/response basis similar to Ethereum and other protocols. Not only does this reduce bandwidth and complexity, but also allows for us to explore gossiping by priority or other dimensions more efficiently.

Allowing for multiple transactions from the same sender is important and will most likely be a needed feature in the future development of the mempool, but for now it suffices to have the preliminary design agreed upon. Having the ability to support multiple transactions per sender will require careful thought with regards to the interplay of the corresponding ABCI application. Regardless, the proposed design should allow for adaptations to support this feature in a non-contentious and backwards compatible manner.

Consequences

Positive

• Transactions are allowed to be prioritized by the application.

Negative

• Increased size of the ResponseCheckTx Protocol Buffer type.
• Causal ordering is NOT maintained.
  • It is possible that certain transactions broadcasted in a particular order may pass CheckTx but not end up being committed in a block because they fail CheckTx later. e.g. Consider Tx₁ that sends funds from existing account Alice to a new account Bob with priority P₁ and then later Bob's new account sends funds back to Alice in Tx₂ with P₂, such that P₂ > P₁. If executed in this order, both transactions will pass CheckTx. However, when a proposer is ready to select transactions for the next block proposal, they will select Tx₂ before Tx₁ and thus Tx₂ will fail because Tx₁ must be executed first. This is because there is a causal ordering, Tx₁ ➝ Tx₂. These types of situations should be rare as most transactions are not causally ordered and can be circumvented by simply trying again at a later point in time or by ensuring the "child" priority is lower than the "parent" priority. In other words, if parents always have priories that are higher than their children, then the new mempool design will maintain causal ordering.

Neutral

• A transaction that passed CheckTx and entered the mempool can later be evicted at a future point in time if a higher priority transaction entered while the mempool was full.

References

• ABCI++
• Mempool Discussion
